Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Nickel
Fast, reliable DHL delivery across New Zealand.
- Insurance Included
- Easy Returns
SKU: NRFG001HSBN
Wastes Traps Grates by Nero Tapware

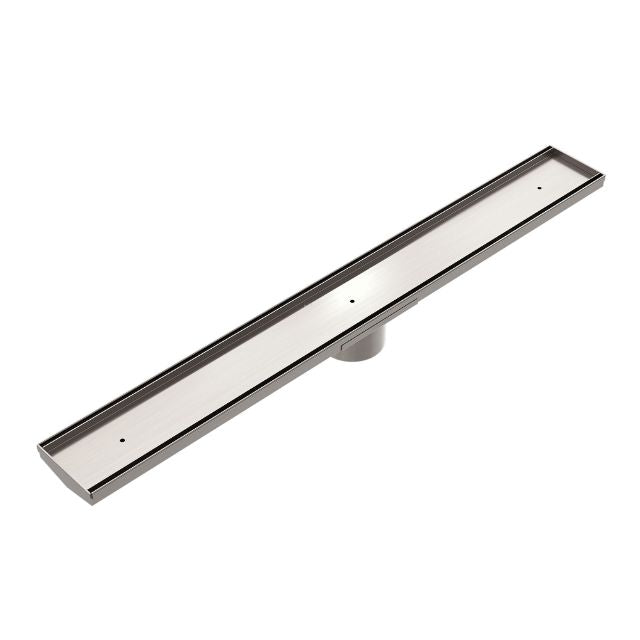

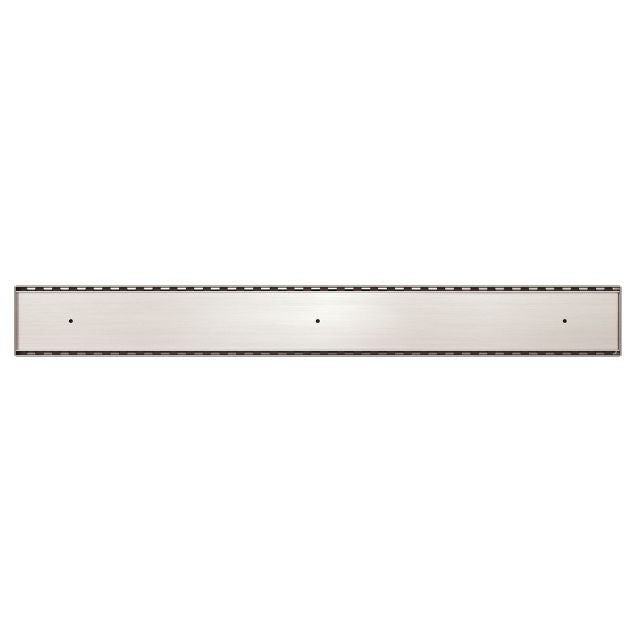

The Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet delivers a seamless, modern bathroom finish by allowing your floor tiles to sit neatly within the grate for a clean, almost invisible look. Crafted from durable, rust-resistant materials, it provides reliable drainage performance while resisting wear, corrosion, and everyday bathroom moisture for long-term peace of mind. Designed to suit a standard 90mm outlet, this Nero Tile Insert V Channel Floor Grate offers straightforward installation and secure fitment, helping reduce concerns around sizing, leaks, and long-term durability.
- Fits 100mm puddle flange for easy integration.
- Suitable for tiles with a thickness of less than 10mm
- Durable 304 stainless steel construction ensures long-lasting performance.

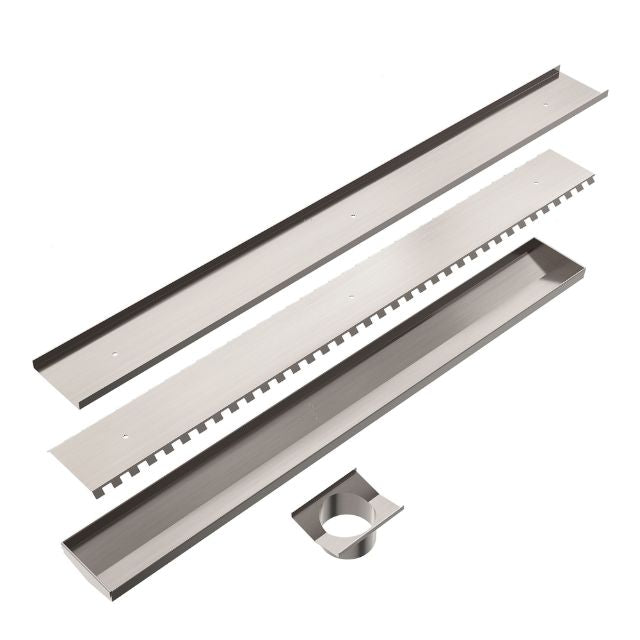

- Separate waste outlet and grate design provides greater installation flexibility.
- V-channel profile enhances water flow speed and drainage efficiency.
- Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required
- Also available in Gun Metal, Matte Black, Brushed Gold and Brushed Bronze. View the full collection here
- Supported by a 10 year warranty

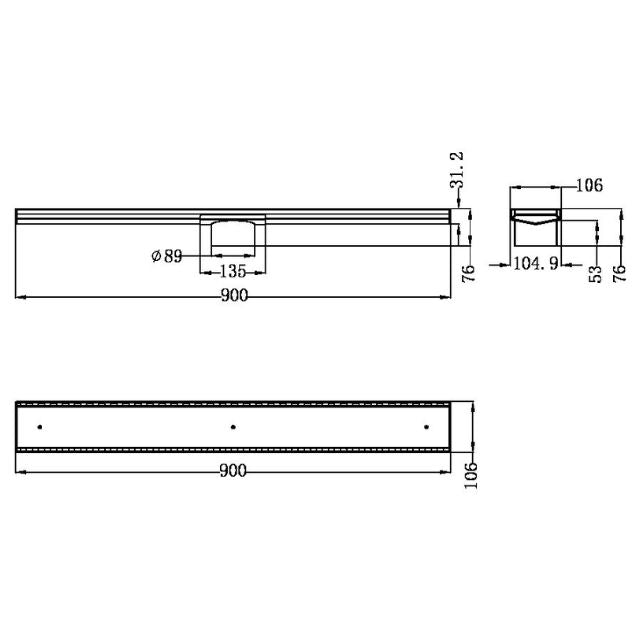

Specifications
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 900mm
Outlet diameter: Ø 89mm
Width: 106mm
Height (Channel Depth): 76mm
Distance from outlet to one edge: 135mm
Hole saw size: 89mm
Warranty: 10 years
Spec Sheet
Download the specification sheet and installation guide below:
Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Nickel
What's In The Box
1x Floor Grate
1x 90mm Outlet
