Zanda Futura slimline deadbolts buying guide
The Zanda Futura is a slim round deadbolt made to match Zanda lever furniture. It has a 54mm diameter, a 27mm throw, a standard C4 keyway and a modern, minimal look, and it comes in single cylinder (key outside, turn inside) and double cylinder (key both sides) versions in satin brass, brushed nickel, graphite nickel and matte black. This collection also holds the Futura round separate privacy kit and the Futura Streamline passage set, so you can build a matching deadbolt, privacy lock and passage handle. This guide explains what a slimline deadbolt is, how single and double cylinder differ, what the throw means, how to use a deadbolt with a handle, how the privacy kit and the passage set fit in, which measurements decide fit and how to fit and look after the lock. For other deadbolts, see deadbolts, and for the wider Zanda range, see Zanda door hardware.
What a slimline deadbolt is
A deadbolt is a lock with a solid bolt that you throw by turning a key or a thumb turn. It does not spring back when pushed, so it holds the door firmly. A slimline deadbolt is one with a small, low profile face. The Futura is a round disc of 54mm diameter, with a flat, plain face and a small keyhole, a modern, minimal aesthetic.
A slim face sits neatly on the door above or below a handle, and does not dominate the elevation. It is a quiet second lock for a front door.
Made to match Zanda levers
The 54mm diameter is made to suit Zanda lever furniture in size and finish. Zanda levers such as the Duke, Epic, Boston and Futura Streamline sit on a 54mm rose, so a 54mm deadbolt has the same round footprint. When you fit a lever and a deadbolt on one door, the two discs align in size and finish, and the door looks planned.
Choose the deadbolt in the same finish as the lever. The finishes match across the range: satin brass, brushed nickel, graphite nickel and matte black.
Single cylinder
Single cylinder The single cylinder Futura takes a key on the outside and a turn on the inside, called key/turn. You use the key to lock and unlock from outside. Inside, you turn a small thumb piece to lock and unlock without a key. This is the most common arrangement for a front door because it lets you leave quickly in an emergency.
Use a single cylinder deadbolt where there is no glass within easy reach of the inside turn, or where quick exit matters most.
Double cylinder
The double cylinder Futura takes a key on both sides, key/key. You need a key to lock or unlock from inside as well as outside. It is harder to open from inside through a broken pane, which suits a door with glass nearby, but it needs a key to get out.
If you choose double cylinder, keep a key in a known place near the door where everyone in the household can reach it, but not in the lock where it can be reached through the glass. Make sure children and older residents know the routine.
Throw and keyway
The throw is how far the bolt extends from the door edge into the frame. The Futura has a 27mm throw, which gives a firm hold in the frame. Check that the frame has enough depth and solid timber at the strike position for the bolt to bite.
The keyway is the shape of the key slot. The Futura uses a standard C4 keyway, a common profile in Australia. A locksmith can cut keys and re-pin the cylinder to match another C4 lock, which helps if you want your external doors keyed alike.
Door thickness
The Futura deadbolt suits doors 35 to 53mm thick. Measure the door at the edge. Most solid timber and solid core entrance doors fall in the range. A thin hollow core door or a very thick door may not.
The deadbolt needs a 54mm hole through the door face and a smaller hole in the door edge for the bolt. If your door already has a 54mm hole from an old lock, the Futura can use it. If not, a joiner can drill the holes.
Using a deadbolt with a handle
A deadbolt locks the door but does not latch it. You need a handle with its own latch to hold the door shut. A lever and deadbolt pair is the standard front door arrangement. The lever holds the door closed and opens it, and the deadbolt locks it. Fit the deadbolt above or below the lever, with space between them so the door edge stays strong.
The Futura Streamline passage set is a handle with a latch, and works with a Futura deadbolt. Together they give a lockable door with a matching look.
The Futura Streamline passage set
The Streamline is a stainless steel lever with a curved handle. The curve prevents the hand from slipping and that it is designed with the elderly and less abled in mind. It has a 54mm screw on rose with concealed fixing, a 60mm backset, a 121mm overall length, a 1131 latch and a strike plate in the box. It incorporates RapidFIT technology designed for faster installation, often under two minutes per set in typical conditions.
It is a passage set for internal connecting doors, and with a deadbolt it can serve as a front door handle. It comes in satin brass and matte black.

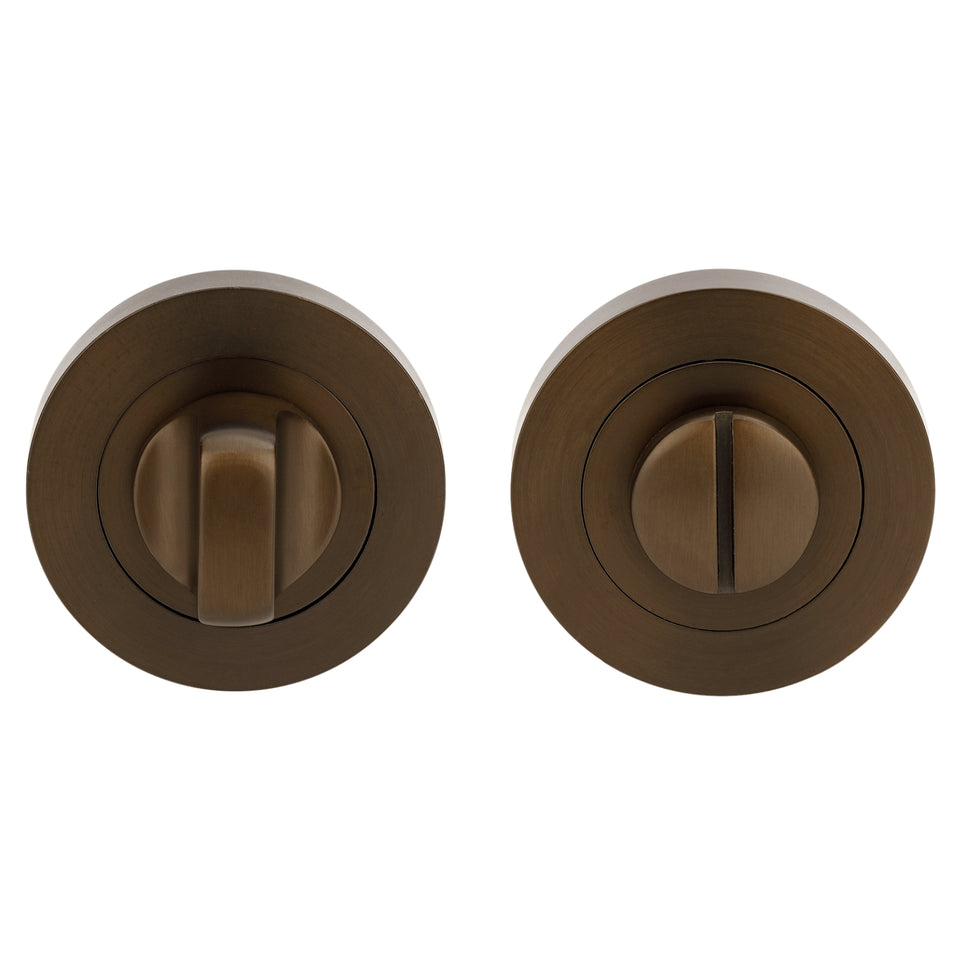

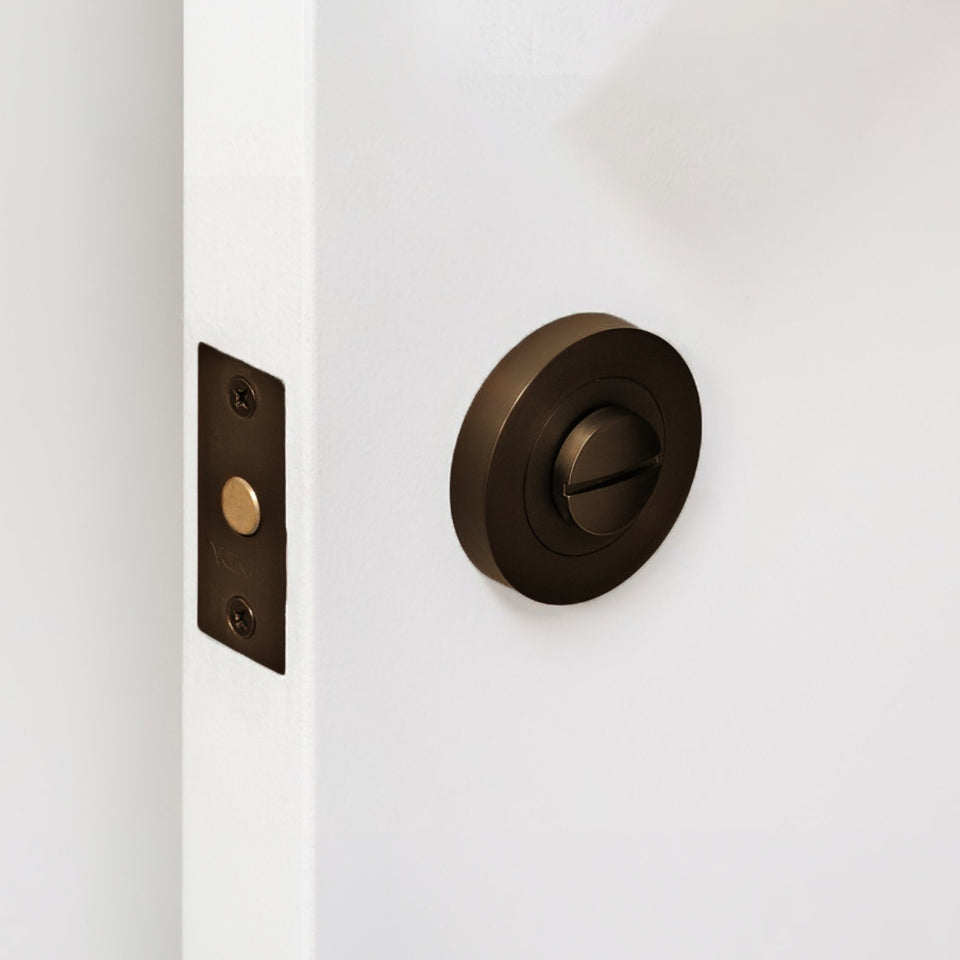

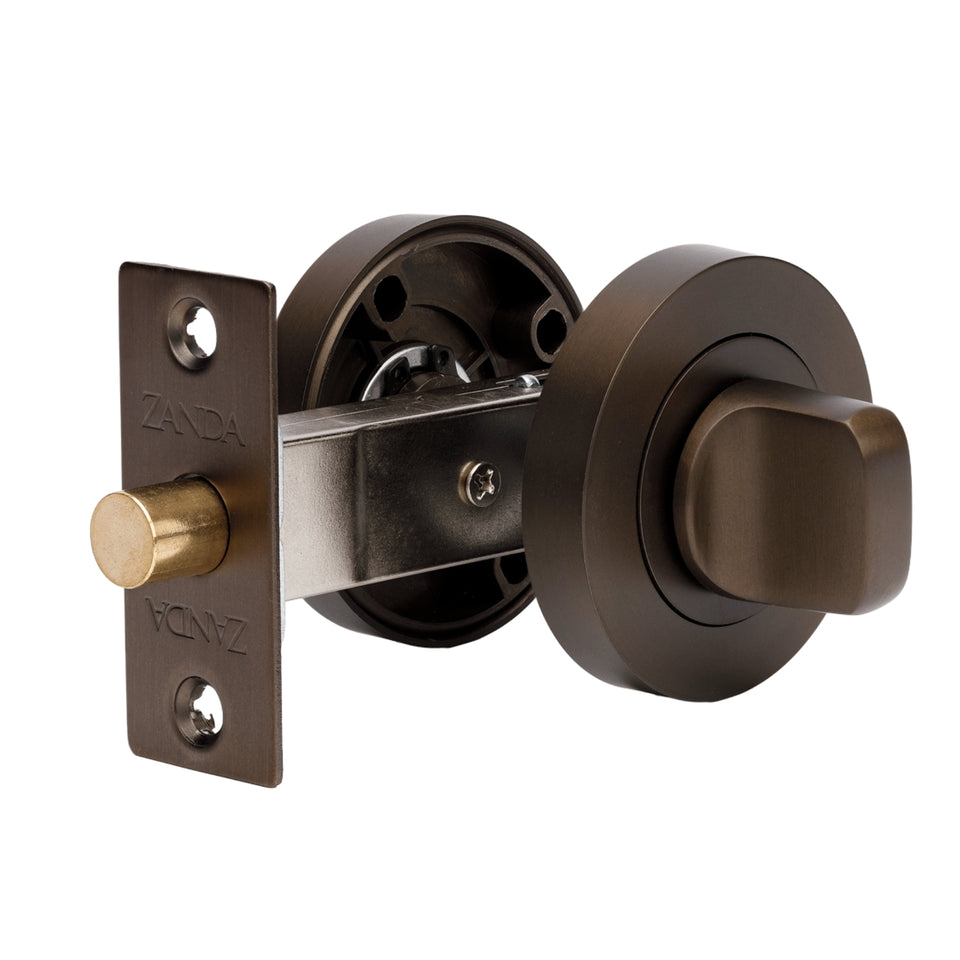

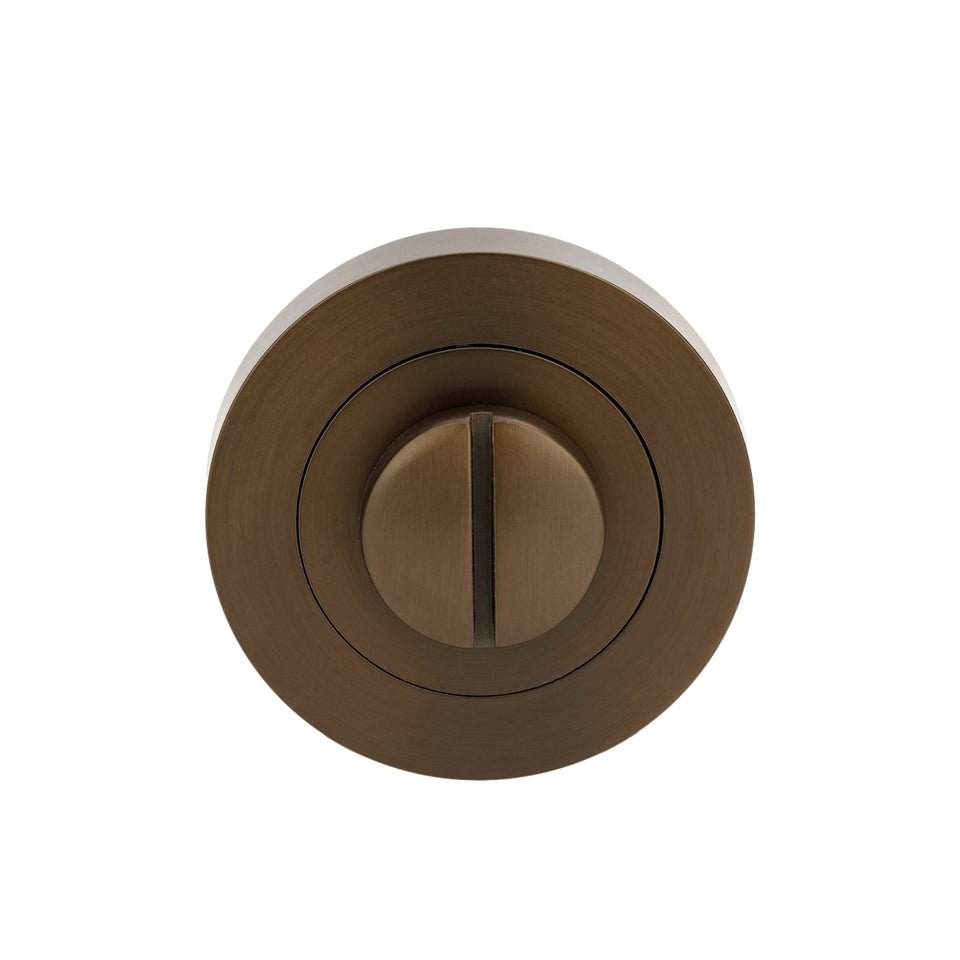

The Futura round separate privacy kit
The privacy kit is a lock on a 54mm rose with an easy to grab turn snib. It is designed to be used in conjunction with a passage set for greater privacy control and can be used for all privacy doors, such as bathroom and powder room doors. It suits doors 35 to 53mm thick and comes in five colours, including ember bronze.
The idea is simple: fit a passage lever to give the door a latch and a handle, then add the privacy kit as a separate turn on the inside. This lets you add privacy to a door that already has a passage set, without changing the lever. See privacy door levers for sets with the lock built in.
Finishes
The deadbolt comes in satin brass, brushed nickel, graphite nickel and matte black. The privacy kit adds ember bronze. Satin brass is a muted gold. Brushed nickel is a soft silver. Graphite nickel is a dark grey. Matte black is flat and strong. Ember bronze is dark and warm.
Choose the finish to match the handle, hinges and door stop. See hinges and door stops for pieces in matching finishes.
Keys
The Futura deadbolt is supplied with keys, and the exact number is on each product page. Keep one in the house and one with someone you trust. If you have several external doors, a locksmith can key the C4 cylinders alike so a single key opens all. Plan it before you order, and tell the locksmith the models you are fitting.
Fitting a Futura deadbolt
Read the installation instructions. Mark the position on the door, usually a hand's width above or below the handle. Drill the 54mm hole through the door face and the smaller hole in the edge. Fit the bolt, then the exterior and interior plates, and fix them through the door. Fit the strike plate and box in the frame, with long screws into the stud. Test the key, the turn and the throw, and check the bolt enters the frame cleanly.
If you are not confident drilling a door, ask a carpenter or a locksmith. Holes in the wrong place cannot be undone.
Setting up the finish across the entry
The deadbolt is one of several metal parts on the door. The lever, the hinges, the door stop and the house number sit with it. Choose the finish for all of them at the start, and choose the Futura in that finish. Where a finish is not offered in every part, such as ember bronze on the privacy kit only, choose the nearest finish for the part that is seen less.
Security beyond the lock
A deadbolt is one layer of security. The door, the frame, the hinges and the strike matter as well. A strong bolt in a weak frame does not secure the door. When you fit the Futura, check the frame at the strike, the hinges and the door itself. See entrance door hardware for the other parts of the entry.
Caring for the deadbolt
Wipe with a soft damp cloth and dry. Avoid abrasive pads and strong chemical cleaners. If the key becomes stiff, use a graphite lubricant and avoid oil, which collects dust. Check the fixing screws from time to time. Test the lock once a month, including the throw and the key from both sides.
Common mistakes to avoid
The first mistake is expecting a deadbolt to latch the door. The second is choosing double cylinder without a plan for the key. The third is placing the deadbolt too close to the handle hole. The fourth is ignoring the strike and frame. The fifth is mixing finishes with the handle. The sixth is ordering for a door outside 35 to 53mm.
A short list avoids all six: latch, cylinder, spacing, strike, finish and thickness.
Our recommendation
For a front door with a Zanda lever, choose the Futura slimline deadbolt in the same finish, single cylinder for easy exit or double cylinder where glass is close. Add a Streamline passage set as the handle if you need one, and the round privacy kit for bathrooms.
Measure the door, plan the keys and check the frame. Then the lock and handle will match and work together.
Questions about the Zanda Futura deadbolt
What size is the Futura deadbolt?
It has a 54mm diameter and a 27mm throw, and suits doors 35 to 53mm thick.
What is the difference between single and double cylinder?
Single cylinder is key outside and turn inside. Double cylinder is key on both sides.
What keyway does it use?
It has a standard C4 keyway.
Does the deadbolt latch the door?
No. A deadbolt locks the door, so you need a handle with a latch as well.
What finishes does it come in?
Satin brass, brushed nickel, graphite nickel and matte black.
